| 型號 Size |
傳動比 Ratio |

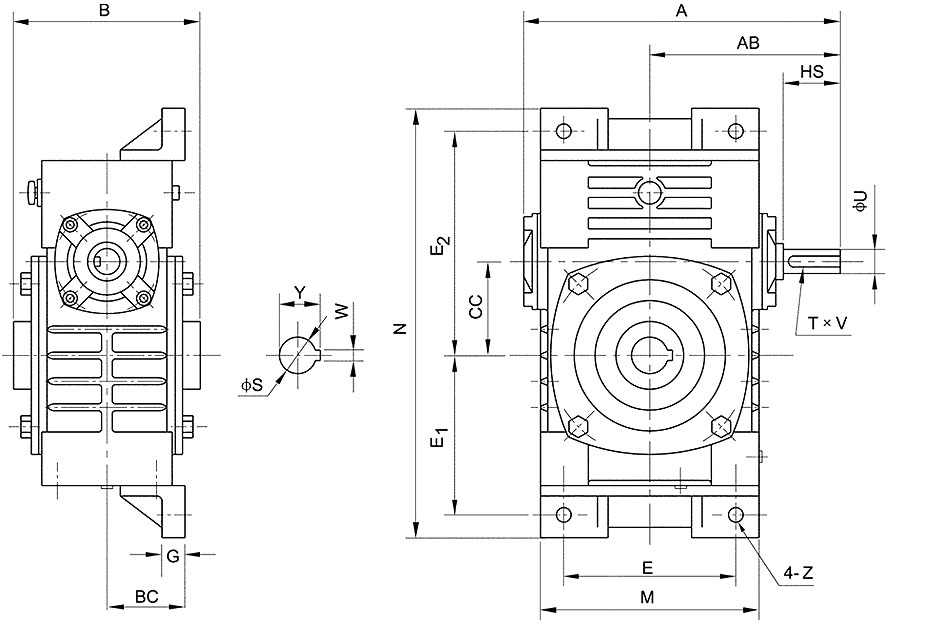

A | AB | B | BC | CC | M | N | E | E1 | E2 | G | Z | 輸入軸 Input Shaft | 輸出軸 Output Shaft | 重量 Weight (Kg) |
|||
| HS | U | TxV | S | WxY | |||||||||||||||
| 40 | 10 15 20 25 30 40 50 60 |
149 | 89 | 90 | 45 | 40 | 95 | 187 | 70 | 72 | 97 | 12 | 10 | 25 | 12 | 4x2.5 | 16 | 5x18.3 | 5 |
| 50 | 175 | 107 | 110 | 50 | 50 | 111 | 226 | 90 | 90 | 110 | 14 | 12 | 30 | 12 | 4x2.5 | 20 | 6x22.8 | 8 | |
| 60 | 198 | 122 | 120 | 55 | 60 | 127 | 257 | 100 | 102 | 129 | 15 | 12 | 40 | 15 | 5x3 | 25 | 8x28.3 | 11 | |
| 70 | 231 | 140 | 132 | 65 | 70 | 152 | 305 | 120 | 120 | 155 | 20 | 15 | 40 | 18 | 6x3.5 | 30 | 8x33.3 | 15.5 | |
| 80 | 261 | 160 | 150 | 70 | 80 | 174 | 350 | 140 | 140 | 180 | 20 | 15 | 50 | 22 | 6x3.5 | 35 | 10x38.3 | 24 | |
| 100 | 322 | 190 | 174 | 90 | 100 | 224 | 410 | 190 | 165 | 215 | 22 | 15 | 50 | 25 | 8x4 | 40 | 12x43.3 | 38 | |
| 120 | 381 | 229 | 180 | 100 | 120 | 264 | 494 | 220 | 195 | 255 | 25 | 18 | 65 | 30 | 8x4 | 45 | 14x48.8 | 56 | |
| 135 | 433 | 260 | 214 | 110 | 135 | 304 | 559 | 260 | 230 | 285 | 30 | 18 | 75 | 35 | 10x5 | 60 | 18x64.4 | 84 | |
| 155 | 504 | 302 | 256 | 140 | 155 | 345 | 605 | 290 | 250 | 305 | 35 | 21 | 85 | 40 | 12x5 | 70 | 20x74.9 | 129 | |
| 175 | 545 | 325 | 282 | 150 | 175 | 374 | 675 | 290 | 273 | 348 | 40 | 21 | 85 | 45 | 14x5.5 | 80 | 22x85.4 | 157 | |
| 200 | 587 | 350 | 324 | 175 | 200 | 424 | 749 | 370 | 305 | 390 | 40 | 24 | 95 | 50 | 14x5.5 | 85 | 22 x 90.4 | 224 | |
| 250 | 705 | 420 | 400 | 200 | 250 | 510 | 920 | 440 | 375 | 475 | 45 | 28 | 110 | 60 | 18x7 | 110 | 28x116.4 | 374 | |
